Concrete cover, in terms of formwork and reinforcement placement, refers to the distance from the rebar to the edge of the concrete. This can be the top, bottom, or sides of any sort of concrete structural element or item. It is the space from the rebar to the interior face of the formwork, or the pour line. Any way you look at it, concrete cover is a term used by engineers, designers, architects, general contractors and concrete contractors to indicate the placement location for rebar in a concrete element.
Just as there is spacing between rebar (e.g., 300mm O.C.), there is spacing from the rebar to the edge of the concrete, too! So, ensuring that concrete cover requirements are met is a job for a concrete contractor.
Concrete cover is a building term used to describe the process of assurance between the formwork contractor and the rebar installer that structural requirements for the pour are being maintained.
What is the Purpose of Concrete Cover?
You see, rebar is metal, and metal can rust and weaken over time with exposure to the elements. But installed in the correct position within the concrete element, and it increases the structural load-bearing characteristics of the element. Having the correct concrete cover for rebar gives the necessary separation of the rebar from the air. Additionally, the concrete cover provides the correct strengthening to the concrete, embedding the rebar at the right depth/location structurally within the concrete, allowing the reinforcement to do its job and provide tensile/additional strength to the concrete.
So, concrete cover plays a vital role in the overall structural design and integrity of concrete slabs, footings, foundation walls, stairs, and more. Also just generally, you don’t want rebar ever being exposed in set/cured concrete.
How is Concrete Cover Achieved?
Some typical methods for achieving the correct concrete cover include rebar tying, chairs, blockings, and other means of securing rebar in place. These methods achieve the correct concrete cover and ensure that the rebar does not shift during concrete pour/placement. Measurements of adequate concrete cover can be done with tape measure throughout locations of formwork/reinforcement.
Concrete placement can disturb the installed rebar, whether with a pump, truck, or hand. This can cause the reinforcement to shift and unnecessarily lead to inadequate concrete cover. That’s why it is so essential, especially with structural concrete elements like foundations and footings, to ensure that rebar is securely tied off and elevated off the ground.
The two methods, proper rebar installation and securement prior to any major pour, are just as essential as the inspection of whether the rebar installation meets the design from the structural engineer of record.

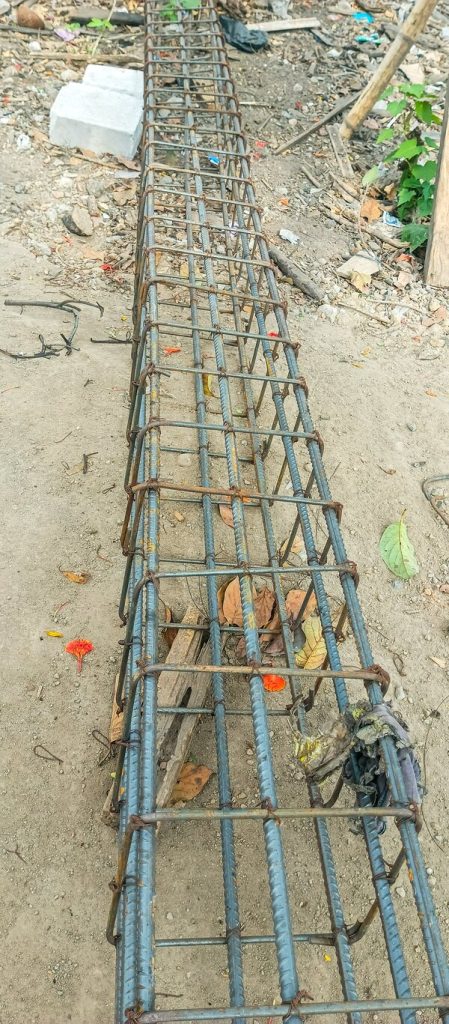

Image: Concrete reinforcement for an item like a concrete column can come pre-tied on the ground and installed per column. When placed into formwork, assurance that concrete cover is achieved on all 4 sides of the rebar-column-cage is essential that the structural requirements set forth by an engineer are met.
Proper Installation of Reinforcement
When you take on a concrete installation for your home, whether it is as simple as a garage pad, a footing, a pile cap, or a foundation wall, assurance that the cover is adequate is essential to ensuring the longevity of your concrete, reducing cracks, unnecessary structural failures, or premature rebar corrosion/rusting.
Concrete cover is super critical for structural elements and architectural concrete elements.
Make sure your concrete contractor, even if they are pouring a small footing for a shed concrete base, is taking time to install rebar/reinforcement to achieve the correct cover properly.
Neatly installed formwork, rebar chairs, proper bracing, well-prepared sub-grade, staking and professional layout are all signs of a professional concrete contractor‘s work.
If you see rebar touching the ground, formwork, or other items, it should be investigated prior to the pour to ensure adequate cover.
Ideally this is caught in the pre-pour inspection.
Concrete Cover Helps with Rebar Location/Placement
Concrete cover is also essential as a general structural design characteristic in allowing the correct spacing between the rebar’s top and bottom layers, for example, in a concrete slab. Structural engineers and designers set out specific conditions for the rebar layout in slabs and footings, for example. Part of meeting those requirements is ensuring adequate concrete cover and the total thickness of the concrete element.
The thickness of the concrete element, the spacing of the rebar, and the concrete cover requirements all have to add-up to ensure overall dimensions. Any discrepancy in the cover, spacing, or distances between rebar, and the total allowable thickness/width of the concrete element may lead to inconsistencies and last-minute adjustments prior to pouring concrete.
Whether it is for a new residential concrete driveway or a concrete slab pour, make sure your concrete contractor investigates the engineer/designer’s requirements for the cover and spacing and verifies the measurements. Any solid concrete foundation and reinforcement contractor will be able to ensure this sort of work is completed properly.
Minimum Concrete Cover Requirements
Generally, a minimum standard could be set at 30mm, but often is higher than this. This concrete cover would be, again, the distance from the interior face of the formwork to the edge of the rebar. When looking at the concrete cover for other structural elements, the more significant the element in size, the more concrete cover will be required. So, concrete cover, in some cases, can be up to 50mm, for example.
It depends on the structural engineer’s determination regarding the element at hand.
Conclusion
Concrete cover is essential to overall structural concrete design and rebar installation.
Whenever you are looking at a concrete element to be poured, the concrete cover is essential to ensure for the process of installation of the rebar and before the pouring of the concrete.
Improper concrete cover can be a problem and needs to be corrected before pour.
